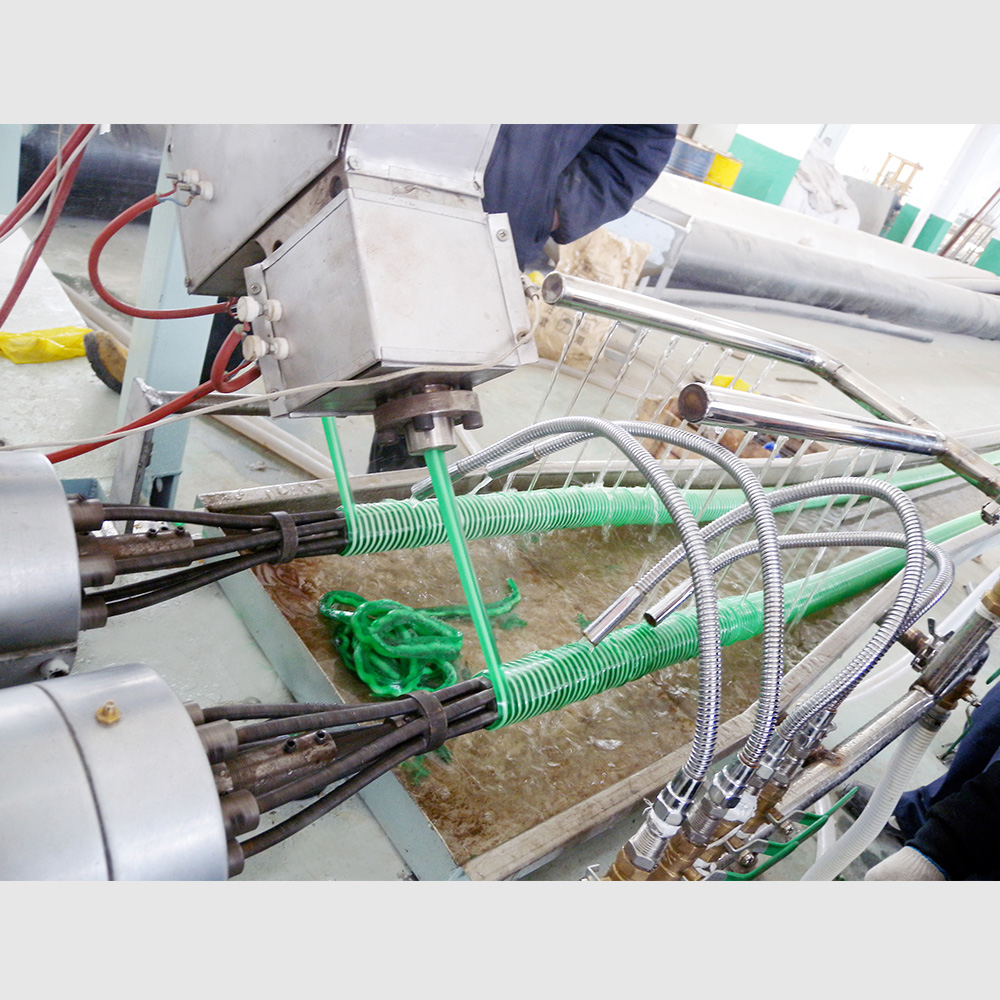

PVC Sprial Hose Pipe Production Line
PVC Sprial Hose Pipe Production Line
Description
Description
| Main Technical Parameters: |
|
|
| Model | Range of Pipe Diameter | Extruder | Speed | Max.Output | Total installed Power | Overall Dimension |
|---|
| BGSZG-25 | Ø12-Ø25mm | BSJ-45×28 | 1-8m/min | 40Kg/h | 16kw | 12×3.6×2.5m |
| BGSZG-50 | Ø25-Ø50mm | BSJ-65×28 | 0.6-5m/min | 60Kg/h | 35kw | 15×3.6×2.5m |
| BGSZG-102 | Ø50-Ø102mm | BSJ-90×28 | 0.4-4m/min | 80Kg/h | 70kw | 18×3.6×2.5m |
| BGSZG-156 | Ø102-Ø156mm | BSJ-120×28 | 0.2-2m/min | 120Kg/h | 86kw | 20×3.6×2.5m |
| BLXZG-63 | Ø20-Ø63mm | BSF 50×28*2 | 2-10m/min | 70Kg/h | 60kw | 36×3.6×2.6m |
| BLXZG-200 | Ø25-Ø200mm | BSF 65×30*2 | 0.2-2m/min | 100Kg/h | 90kw | 46×3.6×2.6m |
